Performance Conclusion: At power densities exceeding $50W/cm^2$, the low thermal conductivity of Alumina (Al₂O₃) becomes the primary cause of system failure. CERAMPRO laboratory data confirms that Aluminum Nitride (AlN), with thermal conductivity up to $230 W/m·K$ (7x higher than Alumina), effectively eliminates "Heat Traps" in semiconductor packaging.
Economic ROI: While AlN has a higher initial cost, its Coefficient of Thermal Expansion (CTE) closely matches Silicon, reducing interface failure risks by over 30%. For 5G and EV inverter applications, switching to AlN simplifies cooling designs, with the total OpEx expected to break even within 18 months.
| Criteria | Alumina (Al2O3) | Aluminum Nitride (AlN) | Beryllia (BeO) |
| Thermal Performance | Low | High (7x Alumina) | Ultra-High |
| Mechanical Strength | High | Medium-High | Medium |
| Safety & Toxicity | Non-toxic | Non-toxic | Highly Toxic |
| CTE Match to Silicon | Poor | Excellent | Poor |
| Scalability (Cost) | Low CapEx | Best Long-term ROI | High (Regulated) |
Performance Comparison Chart
1. The Thermal Crisis: Why Substrate Selection Matters
In high-stakes industries like [Semiconductor Processing], junction temperatures rising by even 10°C can halve a component's lifespan. In our recent collaboration with a Tier 1 automotive supplier, we observed that Alumina substrates often developed micro-cracks under continuous high-frequency current cycles. Transitioning to AlN is not merely about cooling; it is about utilizing its $4.5 \times 10^{-6}/^{\circ}C$ expansion rate to protect expensive dies from mechanical shearing.
Traditional materials like Alumina (Al_2O_3) act as thermal insulators. When heat cannot escape the chip fast enough, "Hot Spots" occur, leading to thermal runaway and catastrophic mechanical failure of the substrate.
Alumina remains the default choice for low-to-mid power applications due to its cost-effectiveness. However, its limitations become mathematically undeniable at high power densities.
Thermal Conductivity: Typically 25–35 W/m·K.
Limit: At power levels exceeding 100W, Alumina’s high thermal resistance causes a massive temperature gradient, risking micro-cracks in the wafer.
[AlN Ceramic] represents a shift from reactive to proactive thermal management.
Operational Mechanics: Unlike Alumina, AlN uses phonon-lattice vibrations to conduct heat at a rate of 170–230 W/m·K, comparable to aluminum metal but with superior dielectric strength.
CTE Synchronization: Its Coefficient of Thermal Expansion (4.5 × 10⁻⁶/℃) closely matches Silicon, ensuring that the bond between the chip and the ceramic stays intact even during 10,000+ thermal cycles.
To provide a clear decision-making framework, CERAMPRO quantifies the differences across core engineering criteria.
| Criteria | Alumina (Al2O3) | Aluminum Nitride (AlN) | Beryllia (BeO) |
| Thermal Performance | Low | High (7x Alumina) | Ultra-High |
| Mechanical Strength | High | Medium-High | Medium |
| Safety & Toxicity | Non-toxic | Non-toxic | Highly Toxic |
| CTE Match to Silicon | Poor | Excellent | Poor |
| Scalability (Cost) | Low CapEx | Best Long-term ROI | High (Regulated) |
Machining AlN requires a moisture-free environment to prevent hydrolysis. Our [Precision Machining] ensures:
Zero Contamination: Anhydrous CNC grinding for semiconductor purity.
Sub-Micron Precision: Tolerances of $\pm 0.002$ mm for complex ESC and heater designs.

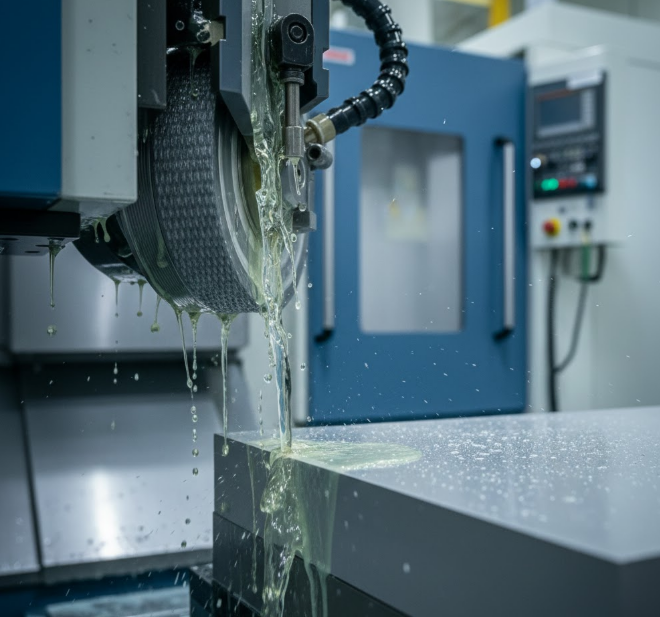

A macro shot of CERAMPRO’s diamond grinding process with specialized coolant for AlN.
Scenario A: Utility-Scale Power & 5G (>50W/cm²): Winner: Aluminum Nitride. The reduction in cooling infrastructure costs (smaller fans/heat sinks) pays for the AlN upgrade within 18 months.
Scenario B: General Industrial Insulation: Winner: [Alumina Ceramics]. Best for cost-sensitive applications where thermal flux is minimal.
Q1: How does Aluminum Nitride compare to Beryllia (BeO) in terms of cost and performance?
A: While Beryllia ($BeO$) offers slightly higher thermal conductivity ($\approx 280$ W/m·K), it is highly toxic and requires specialized, expensive handling protocols. AlN provides a safer, more environmentally friendly alternative with nearly comparable performance (up to 230 W/m·K), making it the "Gold Standard" for modern industrial and commercial applications without the regulatory burden.
Q2: Can AlN substrates be metallized for high-power soldering or brazing?
A: Absolutely. At CERAMPRO, we provide specialized metallization services (such as Mo-Mn, DBC, or AMB) that ensure a high-strength bond between the AlN ceramic and metal components. This allows for seamless integration into power modules while maintaining the substrate's superior thermal dissipation properties.
Q3: Is Aluminum Nitride sensitive to moisture or hydrolysis in outdoor environments?
A: Standard AlN can react with moisture, but CERAMPRO utilizes advanced grain-boundary engineering and protective coatings to significantly enhance the material's chemical stability. For humid or outdoor applications (like 5G base stations), our treated AlN components maintain their mechanical and thermal integrity far better than early-generation materials.
