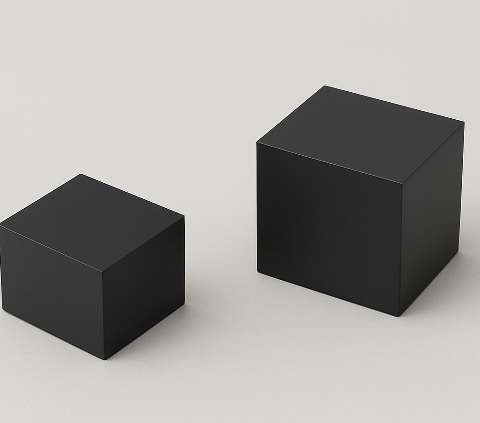

Product Name: Boron Carbide Ceramic Block / B₄C Armor Tile / Sintered Boron Carbide Blank
Product Material: High-purity, hot-pressed or sintered Boron Carbide (B₄C).
Material Properties: Renowned for its extreme hardness (≈30-40 GPa), very high wear resistance, low density (≈2.52 g/cm³), outstanding chemical inertness, and excellent neutron absorption capability.
Application Fields: Primarily used as a key component in ballistic armor systems (both personal and vehicle), as neutron absorber components in nuclear reactors, and as ultra-wear-resistant linings or parts in severe industrial environments.
Application Industries: Defense & Security (body armor, armored vehicles), Nuclear Energy (control rods, shielding), High-end Industrial Processing (sandblasting nozzles, cutting tools, bearing parts), and Aerospace.
Processing Difficulty: Extremely high. The super-hardness and brittleness make shaping and machining very challenging, requiring diamond grinding, ultrasonic machining, or electrical discharge machining (EDM), leading to high costs and long processing times.
Processing Flow: B₄C powder preparation → Mixing with sintering aids → Forming (e.g., dry pressing, cold isostatic pressing) → High-temperature sintering or hot pressing → Diamond tool-based CNC machining/grinding to final dimensions → Precision lapping/polishing (if required) → Non-destructive testing (e.g., ultrasound for armor tiles).
Delivery Period: Typically 10 to 16 weeks or longer, heavily dependent on block size, thickness, required precision, final quantity, and the specific sintering cycle. Armor-grade certification adds significant time.
Boron Carbide Ceramic Blocks are premium-grade, monolithic ceramic components engineered for the most demanding applications where a unique combination of extreme hardness, lightweight, and exceptional ballistic or wear performance is critical. Manufactured from sintered boron carbide (B₄C)—one of the hardest materials on earth—these blocks serve as the foundational element in advanced composite systems, outperforming metals and other ceramics by providing superior protection or durability at a fraction of the weight. Their primary role is to absorb and dissipate immense energy, whether from high-velocity projectiles, abrasive particles, or nuclear radiation.
Key Features:
Superior Hardness & Ballistic Efficiency - With a hardness second only to diamond and cubic boron nitride, boron carbide ceramic blocks offer outstanding resistance to penetration. In armor applications, they are the material of choice for high-level threat protection, providing maximum ballistic stopping power at the lightest possible weight compared to other armor ceramics like silicon carbide or alumina, which is crucial for personal mobility and vehicle fuel efficiency.
Low Density & High Specific Strength - The low density of boron carbide (≈2.52 g/cm³) is a decisive advantage. It allows for the construction of protective or wear-resistant systems that are significantly lighter than those using metallic alternatives, leading to improved system performance, energy savings, and enhanced ergonomics in wearable applications.
Excellent Neutron Absorption Capacity - Boron-10, a primary isotope in natural boron, has a very high thermal neutron capture cross-section. This makes boron carbide blocks an indispensable material in nuclear reactors for control rods, shielding elements, and shutdown pellets, effectively regulating nuclear reactions and ensuring operational safety.
Outstanding Chemical & Thermal Stability - Highly inert to most chemicals and stable in high-temperature environments, boron carbide blocks maintain their integrity in corrosive industrial settings. This stability ensures long-term reliability in harsh applications such as abrasive slurry flow components or high-temperature reactor internals.
